Product Description

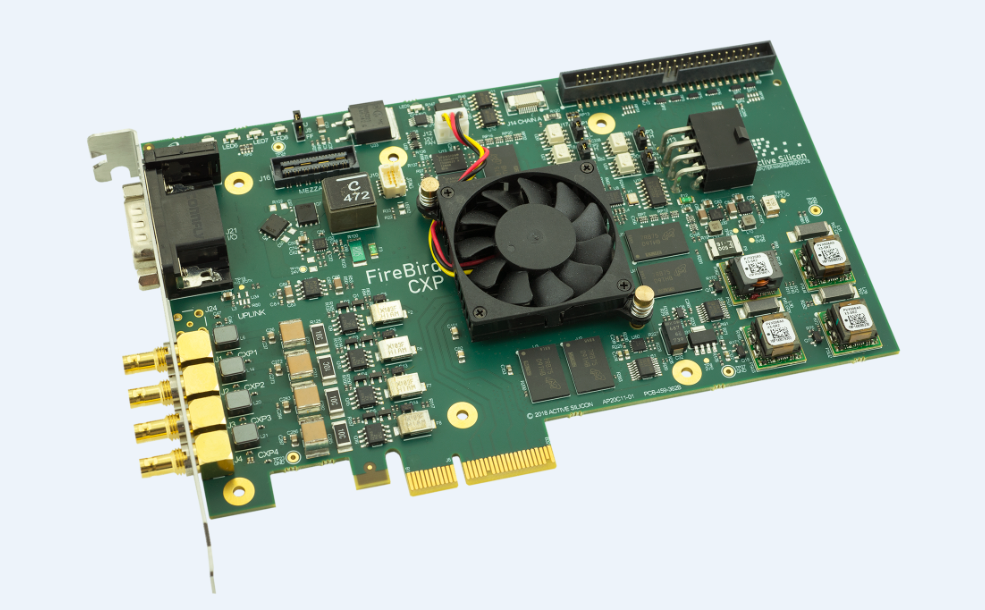

FireBird CXP-12 products are the latest members of Active Silicon’s state-of-the-art FireBird frame grabber family. FireBird is designed for ultimate performance using Active Silicon’s proprietary DMA Engine technology, "ActiveDMA". This technical innovation applies RISC based processor techniques and guarantees high speed and low latency image data transfers and zero CPU intervention.



CoaXPress is a leading transmission standard for high-speed imaging in professional and industrial applications, just updated to include the faster CXP-10 and CXP-12 speeds. Each CoaXPress link supports up to 12.5 Gbps data rates, along with device power up to 13W and device control at up to 42 Mbps – all on a single coax cable. For faster devices, the links can be concatenated to provide multiples of the single coax bandwidth. Very long cable lengths are supported – up to 35m at 12.5 Gbps and 100m at 3.125 Gbps using Belden 1694A cable – or even longer lengths using thicker cables. Active Silicon was one of the primary authors of the CoaXPress international standard, which is hosted by the JIIA (Japan Industrial Imaging Association). All our CoaXPress products are certified compliant to the specification through the JIIA CoaXPress Product Certification Program.



FireBird is supported by Active Silicon’s software development kit, ActiveSDK. This is available as a separate item and allows rapid system development and integration. It provides comprehensive example applications and optimized libraries, and supports a variety of operating systems via a common API, including Windows, Linux (64-bit environments) and QNX. Drivers for third party applications are also available such as Cognex VisionPro, HALCON, Common Vision Blox, StreamPix, LabVIEW etc. Full GenICam support is included in the drivers and this includes a GenTL Producer for data streaming as well as register accesses. Additional to functions that control the hardware, the libraries include general purpose functions for the manipulation and display of images.


Features


>> CoaXPress v2.0 Frame Grabber Family.

>>  Supports CoaXPress speeds up to CXP-12.

>>  RISC based ActiveDMA engine – acquisition with zero CPU usage.

>>  CoaXPress gives high speed data, power, and camera control all over a single cable.

>>  High performance CXP 2.0 with up to 50 Gigabits per second input rate.

>>  Fast PCI Express 4-lane and 8-lane Gen3 interfaces.

>>  Comprehensive I/O including end bracket I/O.

>>  Micro-BNC connectors.

>>  Standard half-length PCI form-factor.

>>  Full GenICam support (including GenTL Producer).

>>  Supported by the proven ActiveSDK.
